Mega Mower X
The Quick Attach Mega Mower X
- Direct Driven
- 10" Cut Capacity
- Replaceable Mulching Teeth
- Available in Standard and High Flow
- Available in 66", 72", or 78"
Clear and mulch the heaviest brush, grass, and trees with the Mega Mower X Industrial Open Front Brush Cutter. This design levels forests and overgrowth, allowing you to reclaim what once was. The industrial deck is reinforced for maximum cutting potential and long-term durability. Open deck design and heavy-duty push bar make quick work of large saplings and small trees.
$8,500 +tax

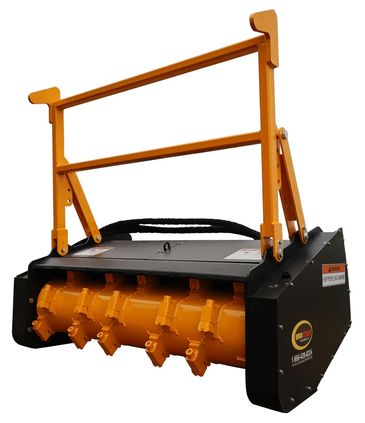

Forestry Drum Mulcher
Quick Attach Drum Mulcher
- 71" Wide
- 60" Drum
- Replaceable teeth
- Multiple motor options from 33 - 41 GPM / 3,000-4,100 PSI
- Replaceable skid shoes for maximum longevity
- High-Strength Kevlar belt to prevent slippage and wear
- Variable displacement motor is an upgrade in most mulcher's but comes standard with our mulcher
- Built-In bladder for added motor protection
- Adjustable push bar
- Reversible teeth for double the tooth life
The Skid Steer Forestry Mulcher is an industrial land clearing machine for breaking trails, leveling building sites, and clearing storm damage. This beast is designed with a variable displacement motor that automatically determines the best combination of speed and torque to tackle any situation.
Call on pricing

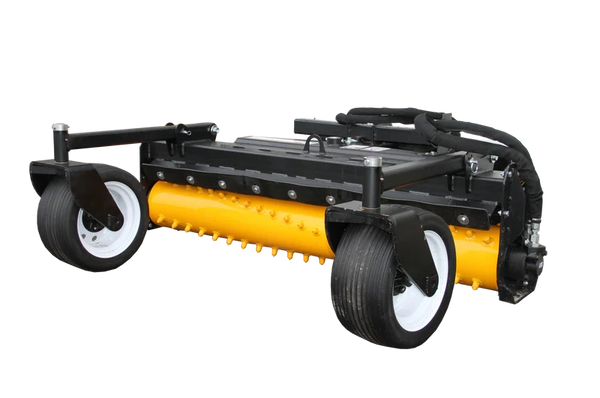

Harley Rake/Soil Conditioner
Quick Attach Brand Harley Rake
Operates in both standard and high flow for the best performance of any soil conditioner in the market
This attachment has all of the benefits of our rigid soil conditioner, plus a unique floating connection option that provides automatic leveling as the unit follows the contour of the ground. Easily rake stones and debris to either side or straight ahead for easy pickup. Achieve greater ground speed with the large-diameter rotor and aggressive teeth that pulverize the soil on the go. The counter-rotating rotor action moves soil ahead while tilling. This allows you to fill in low spots and cut down high spots in one pass. Rake and till as deep as 4” to create the perfect seedbed. This unit separates rocks, tears up sod, and eliminates dirt clods for a truly professional finish.
- Direct-Drive motor turns large 10” rotor
- Rigid Mount or Depth Control on the fly (optional) or
- Tungsten – carbide teeth in a spiraled pattern for more pressure per tooth
- Power angling (optional)
- Large solid rubber tires to eliminate flats and downtime
- Optional box end plates (Wing Kit)
Call on pricing
Heavy Duty Brush Cutter
The Blue Diamond® Skid Steer Heavy Duty Brush Cutter is a high-performance cutter that is priced right for the customer who is not an everyday heavy commercial user.
It mows excellent in grass and cuts up to 3” diameter brush with ease!
- Available in 60” and 72” cutting widths
- Chain curtain minimizes discharge
- Perimeter wire/vine guard on blade carrier
- 3” diameter cutting capacity
- Dual external crossover relief valves
- 4000 Series Geroler motor
- Dual-direction cutting
- 1-year warranty
Call on pricing, multiple options
Extreme Duty Brush Cutter- Open or Closed Front
The Blue Diamond® Open Front Extreme Duty Brush Cutter is not only a brutal machine, mowing up to 6″ to 8″ material, but it also cuts grass better than any of its competitors.
- 3.5″ (at bearing, 4″ at seal) forged one piece spindle is the toughest in the industry.
- Grease-filled drive dramatically improves bearing life and downtime due to seal damage
- Custom purpose built motor and relief block out last industry standard motors
- External cross-port reliefs protect motor versus internal relief valves
- Fully enclosed motor compartment keeps out the debris that causes overheating issues, especially see in new Tier 4 version machines.
- No rear roller to bounce off stumps or pull cut debris along. Open design allows smoother operation
- Bi-directional cutting allows for control of the discharge angle, as well as doubling the use of the blades
Call on pricing, multiple options
Severe Duty Brush Cutter
Blue Diamond® Skid Steer Severe Duty Brush Cutter has incredible power and versatility that will all but remove the need for a mulching head. 10” cut capacity and incredible performance in grass make this brutally tough unit the top in its class. Adjustable skid shoes allow the cutting height to be altered. The mammoth 1” thick blade carrier weighs over 500lbs and has a serrated edge to help with mulching and destroying fence wire that so often takes out brush cutters. The best just got better!!
- High torque piston motor is available in the high or low flow!
- 10" cut
- The low flow version outperforms most competitors’ high flow models!
- Massive 1″ thick serrated blade carrier weighs over 500 lbs.
- Easy machine entry
- Adjustable skid shoes
- Cutter weighs over 2000 lbs.
- Large pressure gauge
- 1-year warranty
Call on pricing, multiple options
Drum Mulcher
The Blue Diamond® Drum Mulcher is designed for clearing brush and heavy mulching with a 60″ cut width.
Our drum mulcher utilizes cutting drum bearings and an overhung load adapter, which are the same components used in 300, 400, and 600 HP mulcher heads. The head can be configured to be installed on close or open loop hydraulic system, providing versatility based on the operating machine’s needs. The unique mulcher body design allows for debris to be shed in minimal accumulations.
Requires: 35-52 GPM high flow
- Low profile tooth anvil (carbide compatible)
- Secondary edge guard on the tooth anvil
- Heavy duty overhung load adapter
- Hydraulic motor case overpressure protection (COP)
- Heavy duty synchronous drive belt
- Serrated push bar
- Optional gate
- Long-life heavy duty drum bearings
- Single 1-inch high grade bolt tooth fastening system
- Reversible chipping tooth (4 times-Standard Tooth, 2 times- Carbide tooth)
- Tooth anvil with secondary edge guard
- Danfoss H1B 110cc 2 speed motor
Call on pricing, multiple options
Disc Mulcher
The Blue Diamond® Skid Steer Disc Mulcher is the most capable disc mulcher the market has to offer. Available in 44” and 60” cutting widths. This attachment has chipping teeth that can rotate 4 times to lengthen their useable life before needing sharpening.
- Available 44” and 60” widths
- High efficiency piston motor
- Weights: 44″ = 1,725 lbs. and 60” = 2,432 lbs.
- 150cc motor requires 32-44 GPM, 3200-5000 PSI.
- 200cc motor requires 45-60 GPM, 3200-5000 PSI.
- 3/8″ thick deck & reinforced sides.
- Teeth on top, side & bottom of the carrier
- 1″ thick hinged deflector
- Throws material away from the machine.
- Can cut below ground surface
Call on pricing, multiple options
Light-Duty Grapple Bucket
The Blue Diamond® Light Duty Grapple Bucket is designed with small loaders in mind with limited lift capacity. Weighing only 454lbs, it lets you grab a load without the fear of tipping your skid steer. Dual top clamps and grease fittings are standard.
- Dual independent clamps
- 3/8” steel
- Greasable 1” pivot pins
- Flat face couplers included
- Opens to 30”
Call on pricing, multiple options
Heavy-Duty Grapple Bucket
The Blue Diamond® Heavy Duty Grapple Bucket is designed for up to 50 hp skid steers with a moderate work load. Made from 1/2” steel, this attachment is strong yet light enough for smaller machines. Pivot-point grease fittings and couplers are standard.
- 1/2″ thick top clamps
- Cylinder protection covers
- Opens to 32″
- Best suited for machines up to 50 hp or 1800lb lift capacity
- Protected hoses
Call on pricing, multiple options
Severe-Duty Grapple Bucket
This Blue Diamond® Skid Steer Severe Duty Grapple Bucket comes from years of input from demolition contractors and recyclers. This Severe Duty model combines features from our demolition series, such as our Extreme Duty model, with some new features to offer one of the most effective and durable grapple buckets in the industry. The bolt-on sides allow the operator to contain more material if needed or remove them for handling longer products like pipe or trees. Rental Recommended.
- No-pinch hose routing
- Bolt-on sides
- 3/4″ top tines
- Heavily reinforced top clamps
Call on pricing, multiple options
Standard-Duty Rock Grapple
The Blue Diamond® Standard Duty Grapple Rock Bucket uses 3/8” steel with the tines spaced at 3”. This very popular bucket can be used for sifting or raking and is available with dual grapples for holding your material. Works well as a land plane, skimming off high spots with the leading edge and smoothing the loose soil off again with the rear cross bar. The drop down inside keeps rocks from sliding out.
- Laser cut cutting edge gussets tips of tines
- 3” spacing between tines
- Works great as a land plane and for light clearing
Call on pricing, multiple options
Heavy-Duty Rock Grapple
The Blue Diamond® Heavy Duty Grapple Rock Bucket uses 3/8” steel, the tines are spaced at 3”, and the top clamps are constructed of 1/2″ steel. This highly popular bucket can be used for sifting or raking and is available with dual grapples for holding and securing your load. This skid steer attachment works well as a land plane, skimming off high spots with the leading edge and smoothing the loose soil off again with the rear cross bar. The drop down inside keeps rocks from sliding out.
- Laser cut cutting edge gussets tips of tines
- 3” spacing between tines
- Works great as a land plane and for light clearing
Call on pricing, multiple options
Severe-Duty Rock Grapple
The Blue Diamond® Severe Duty Skid Steer Grapple Rock Bucket uses 1/2” steel with the tines spaced at 3”. This popular bucket can be used for sifting or raking and is available with dual grapples for holding your material. This attachment also works well as a land plane, skimming off high spots with the leading edge and smoothing the loose soil off again with the rear cross bar. The drop down inside keeps rocks from sliding out.
- No pinch hose routing
- 3″ spacing between tines
- Bolt-on sides can be removed for moving logs
- Back is open either side of quick attach for better sifting
- New style cutting edge for better leveling
- Increased structure in top clamps to prevent twisting
Call on pricing, multiple options
Light-Duty Root Grapple
The Blue Diamond® Light Duty Root Grapple is designed with small skid steers in mind with limited lift capacity. Weighing only 454lbs, this attachment lets you grab a load without the fear of tipping your machine. Dual top clamps and grease fittings are standard.
- Dual independent clamps
- 3/8” steel
- Greasable 1” pivot pin
- One-piece tines
- Protected cylinders
- Flat face couplers included
- Opens to 30”
Call on pricing, multiple options
Extreme-Duty Root Grapple
This Blue Diamond® Extreme Duty High Capacity Root Grapple is designed to handle huge jobs with ease when attached to a skid steer. The protected cylinders and hoses ensure that down time is kept to a minimum. From the heavily reinforced mount to the rugged top clamps, this grapple is one of the toughest on the market. The massive top clamps allow for 25”H x 42”D worth of material to be grabbed in each load.
- 3/8” thick tines with 1/2” top clamps
- 25”H x 42”D opening inside of clamps
- Opens to 59” at tip of tines/clamp
- Dual acting cylinders
- Heavily reinforced mount
- Serrated tine tips to rip through roots
Call on pricing, multiple options
Vibratory Roller
The Blue Diamond® Vibratory Rollers are available in 73″ and 84″ working widths. All models feature hydraulically powered exciter systems designed with oil-mist lubrication. All models minimize exciter shaft deflection, lower operating temperatures, and provide our customers with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame, minimizing transmission of vibration to the host machine. All models come with a universal quick-attach system. Smooth or pad foot drum options are available. Rental Recommended.
- Industry leading bearing design
- Integral knockdown blade
- Smooth or pad foot models
- Exciter systems are oil mist lubricate
- Vibrating drums are effectively isolated from the roller frame
- 12 heavy duty rubber shock mounts
- Control valve block compensates for the correct flow of oil to prevent over speeding andover pressure of the exciter shaft
- Universal adapter plate
- Drive motor is inside a heavy duty steel frame
Call on pricing, multiple options
Hydraulic Breaker
We here at Blue Diamond® have completed our 5 year quest to develop our superior Hydraulic Breaker for skid steers. This “hammer” design offers technology, simplicity, reliability, ease of setup, and service support. Our hydraulic breaker has little to no downtime. Get started on your demolition, construction, and quarry jobs today!
- 3-year warranty
- Mono-block design / no tie rods
- Anti-blank firing system hydraulic brake
- No re-gassing needed
- Only 2 internal moving parts
- 2 speed control / variable stroke
- Quiet operation
- Self-regulating
- Body bushings around piston
Call on pricing, multiple options
Heavy-Duty Harley Rake
This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine, with mounts offered for mini and full size skid steer machines.
- Flip up wheels
- No-flat airless wheels
- Drum width 48″, 60″ and 72″
- 5/8″ greaseable axles on wheels
- 7″ diameter drum with 1.5″ teeth
- Overall width 12″ more than drum width
- 1.25″ spindles with adjustable height
- Bolt-on mount (can be switched for a different mini or full size skid steer mount)
- Spindles on drum are 1 3/8″ diameter greaseable bearings
- Fixed carbide teeth
- Available with manual or hydraulic angle
Call on pricing, multiple options
Severe-Duty Harley Rake
The Blue Diamond® Severe Duty Series 3 Power Rake is a must have for anyone who uses a power rake for a living. This unit is our biggest and strongest power rake that we offer and an industry leader for durability and ease of maintenance. It comes standard with the airless tires you’ve come to love, and the increased drum diameter moves soil faster than ever before.
NOTE: These are shown with OPTIONAL harden steel or carbide teeth that are either replaceable or fixed.
- 6,000 Series hydraulic motor
- Airless tires
- Weld-on, replaceable, and carbide teeth options
- 3/8” thick wall tube frame
- 1.5” motor shaft and high pressure seals
- 8” drum diameter, 13” including teeth
Call on pricing, multiple options
Auger Power Head
The Blue Diamond® Extreme Duty Series 2 Auger offers the ultimate in performance, quality, and cost-effectiveness for digging post holes and drilling soil with skid steer machines. Designed with high-grade materials and innovation, this attachment allows the gearbox to go down the hole, maximizing drilling depth while eliminating downtime. Blue Diamond skid steer auger attachments are perfect for drilling in most ground conditions.
- Compact high torque manufactured gearbox
- 2 piece shaft design ensuring maximum side load ratings
- 5-year gearbox warranty, 3-year motor warranty, and lifetime shaft pull-out warranty
- Auger bits sold separately
Call on pricing, multiple options
Rototiller
Till up to 6” deep with this Blue Diamond® Skid Steer Bidirectional Rototiller. The pivoting tines allow for maximum bite in either direction for use in forward or reverse. Our rototiller is made for heavy duty tilling with your skid steer, and it provides a level of quality you just won’t find anywhere else. This attachment has proved top of its class in rental ROI and works well on a wider selection on machines than most. This powerful direct drive motor provides more reliability than chain drive units. Rental Recommended.
- Universal mount
- Tilling widths of 68″ and 76″
- Works in forward and reverse
- Double edge replaceable tines
- Does not require high flow
- Tilling depth of up to 6″ or 8″
- 1/2″ skid plates
- Protected direct drive motor with a heavy duty bearing nose cone (not chain drive!)
- Solid round tube on leading edge for strength
- Hood design resists jamming
- 15 to 23 GPM
Call on pricing, multiple options
Buckets
The Blue Diamond® General Purpose Buckets for skid steers are available in a variety of configurations. We offer weld-on cutting edge, bolt-on cutting edge, teeth, toothbar, or a long-bottom version. These well-engineered, low-profile buckets offer a powerful breakout force and great visibility. Buckets up to 72″ wide use 3/16″ material back and bottom. The 78″ and larger sizes use 1/4″ material. All standard buckets are 20″ tall and use a 3/4″ by 6″ cutting edge. The standard bottom is 30″ front to back, and the long-bottom bucket is 36″.
- Low profile: 20″ high, 29″ deep
- Low profile, long bottom: 20″ high, 39″ deep
- 60″ – 72″ uses 3/16″ wrap
- 78″ – 84″ uses 1/4″ wrap
- 3/4″ cutting edge
Call on pricing, multiple options
Pallet Forks
Blue Diamond® Hydraulic Pallet Forks are built for severe usage applications. Rated for 6000 lbs., they’re best suited for large frame skid steers and compact wheel loaders. The walk-through style rear frame allows unobstructed use around the arm of a compact wheel loader.
- Adjusts hydraulically
- Offers great load visibility
- Walk through frame for easier access to cab
- Choice of 48″ or 60″ tines ( x 4″ x 1 3/4″) standard.
- 6,000 lbs capacity
- Includes hoses and couplers
Call on pricing, multiple options
